Inicio > Modelos Yamaha > 125cc SCOOTERS > RAYZR 125 > 2025 > Intake

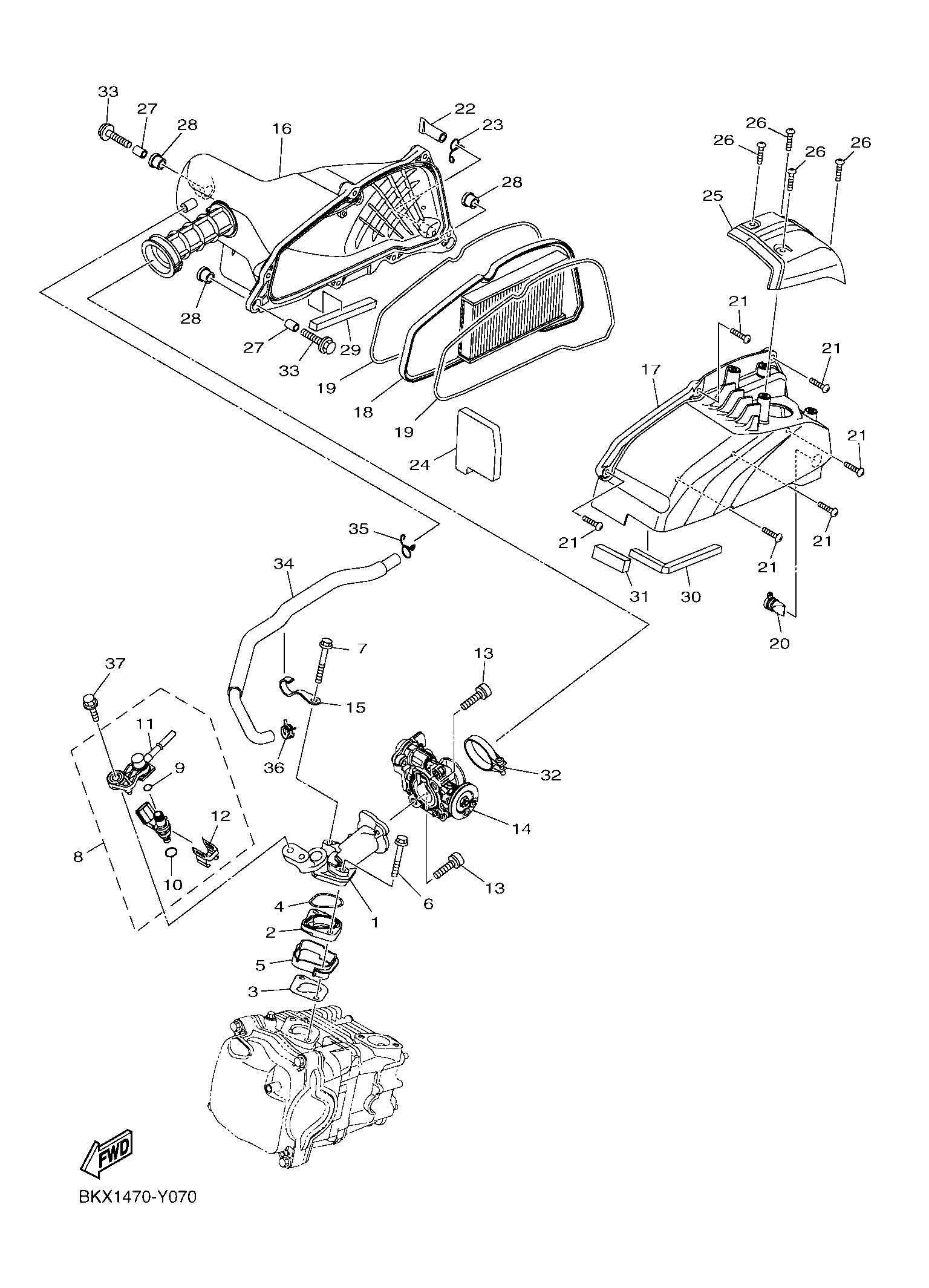

Volver al despiece completo

# Ref. unds. Precio/unidad
1 B7JE35851000
MANIFOLD 		1 49,45 € +
2 B7JE35950000
JOINT 		1 6,52 € +
3 B7JE35560000
GASKET, MANIFOLD 		1 5,96 € +
4 932103588300
O-RING 		1 0,50 € +
5 B7JE35930000
DAMPER 		1 1,37 € +
6 958120603500
BOLT, FLANGE 		1 Obsoleta
7 958120604500
BOLT, FLANGE 		1 1,37 € +
8 B7JE37701000
INJECTOR ASSY 		1 130,19 € +
9 BACE41470000
.O-RING 		1 4,23 € +
10 BACE41A10000
.SEAL RING 		1 6,99 € +
11 B7JE39381000
.PIPE 		1 8,19 € +
12 1STE41370000
.CLIP 		1 0,99 € +
13 901100684600
BOLT, HEXAGON SOCKET HEAD 		1 1,71 € +
14 B7JE37500300
CAJA DE ACELERADOR COMPL. 		1 589,89 € +
15 904621680500
CLAMP 		1 0,43 € +
16 B7JWE4411000
AIR CLEANER CASE COMP. 		1 50,94 € +
17 B7JWE4431000
CAP, CLEANER CASE SUB ASSY 1 		1 52,78 € +
18 B7JE44500000
ELEMENT ASSY, AIR CLEANER 		1 19,28 € +
19 B7JE44520000
SEAL 		1 2,88 € +
20 B7JE443G0000
PIPE, DRAIN 2 		1 1,21 € +
21 977025002500
SCREW, TAPPING 		5 0,43 € +
22 1GCE443H0000
PIPE, DRAIN 3 		1 4,36 € +
23 904671280000
CLIP 		1 0,57 € +
24 B7JE44510000
ELEMENT, AIR CLEANER 		1 17,16 € +
25 B7JE44170000
COVER 1 		1 17,28 € +
26 977025001600
SCREW, TAPPING 		5 0,52 € +
27 90387064W300
COLLAR 		1 1,70 € +
28 904801301300
GROMMET 		1 2,76 € +
29 905201081100
DAMPER, PLATE 		1 0,57 € +
30 905201083200
DAMPER, PLATE 		1 1,42 € +
31 905201085100
DAMPER, PLATE 		1 0,18 € +
32 904504680300
HOSE CLAMP ASSY 		1 1,27 € +
33 958120602500
BOLT, FLANGE 		1 0,43 € +
34 B7JE11660000
PIPE, BREATHER 1 		1 8,81 € +
35 904671385800
CLIP 		1 3,26 € +
36 904671380000
CLIP 		1 9,02 € +
37 958120602500
BOLT, FLANGE 		1 0,43 € +
