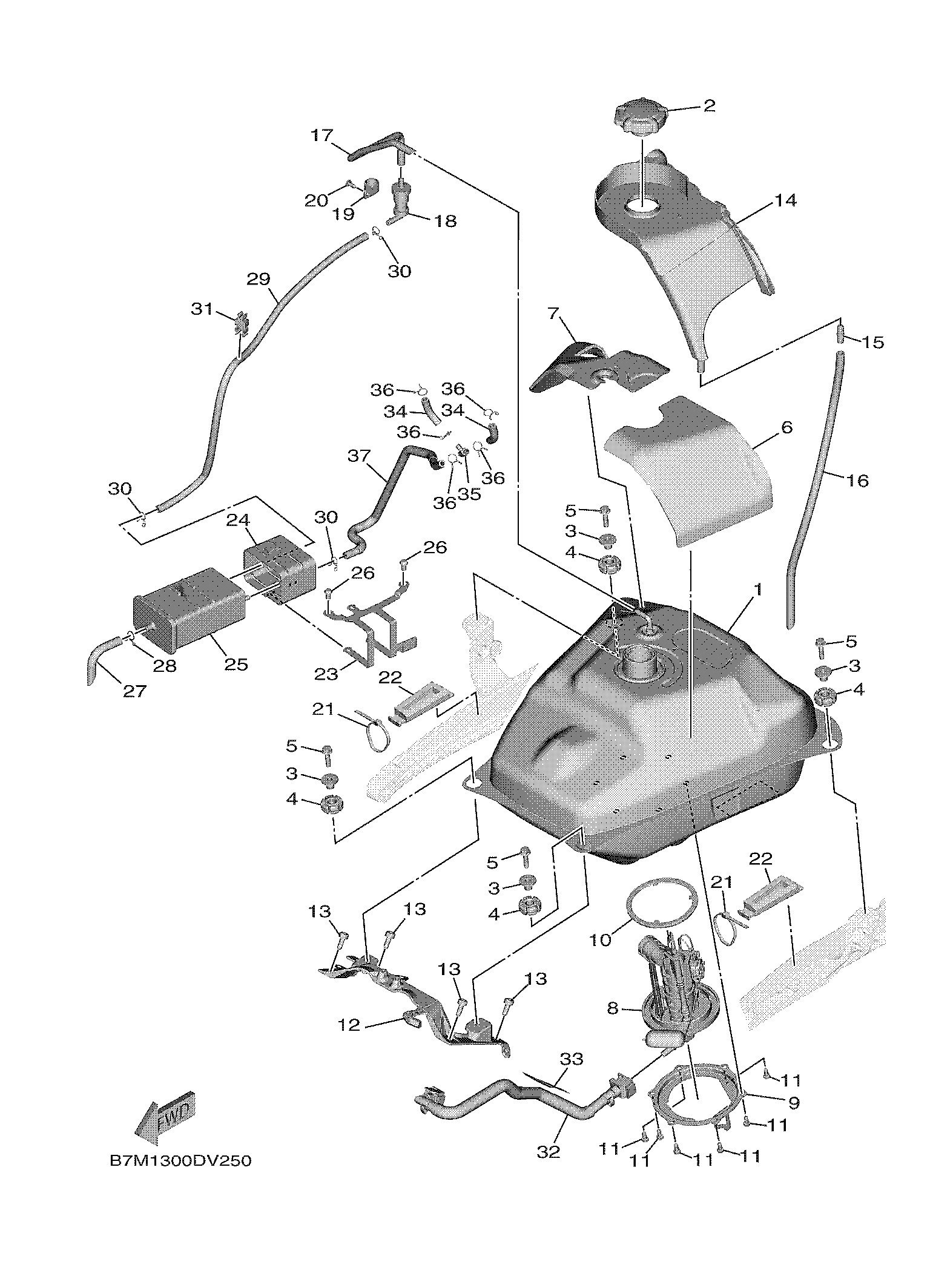

Inicio > Modelos Yamaha > MAXI SCOOTERS > TMAX 560 > 2020 > Fuel tank
Volver al despiece completo

# Ref. unds. Precio/unidad
1 BC3241100000
FUEL TANK COMP. 		1 353,11 € +
2 BC3246100100
CAP ASSY 		1 58,24 € +
3 90387062U900
COLLAR 		1 2,87 € +
4 BC3243390000
GROMMET 		1 3,48 € +
5 95D320602500
BOLT, FLANGE DEEP RECESS 		1 0,60 € +
6 BC3241820000
DAMPER, LOCATING 2 		1 18,47 € +
7 BC3241850000
DAMPER, LOCATING 5 		1 11,18 € +
8 BC3139070200
FUEL PUMP COMP. 		1 413,59 € +
9 BC3244910000
BRACKET, FUEL PUMP 		1 17,52 € +
10 1S4244860000
O-RING 		1 17,99 € +
11 913120501000
BOLT, HEXAGON SOCKET HEAD 		1 1,30 € +
12 B7M213450000
BRACKET, TANK FITTING 		1 75,71 € +
13 901100604300
BOLT, HEXAGON SOCKET HEAD 		1 2,73 € +
14 B7M2414A0000
COVER, FILLER 		1 34,09 € +
15 4JP217530000
BOSS, CONNECTOR 		1 3,53 € +
16 BC3243180000
PIPE, OVERFLOW 		1 13,82 € +
17 BC3243130000
PIPE 3 		1 20,86 € +
18 5RB241800000
ROLL OVER VALVE ASSY 		1 115,18 € +
19 904641501400
CLAMP 		1 2,01 € +
20 902690500100
RIVET 		1 1,26 € +
21 1UA825910000
BAND 		5 1,76 € +
22 BC3241840000
DAMPER, LOCATING 4 		1 17,52 € +
23 BC32419F0000
BRACKET, CANISTOR 		1 11,41 € +
24 BC3241830000
DAMPER, LOCATING 3 		1 14,52 € +
25 BC3241700000
CANISTER ASSY 		1 87,44 € +
26 920120601000
BOLT, BUTTON HEAD 		1 0,70 € +
27 5EL243161000
PIPE 6 		1 9,94 € +
28 90467110A300
CLIP 		1 1,21 € +
29 B7M243150000
PIPE 5 		1 21,89 € +
30 90467090A200
CLIP 		1 0,60 € +
31 9046410M5200
CLAMP 		1 3,80 € +
32 B7M139710100
PIPE, FUEL 1 		1 83,26 € +
33 B7M2476U0000
PROTECTOR 1 		1 4,18 € +
34 B7M144650000
PIPE 		1 2,05 € +
35 904130603100
.WAY 3 		1 6,53 € +
36 904670900600
CLIP 		1 0,60 € +
37 B7M137580000
PIPE, JOINT 		1 22,67 € +
