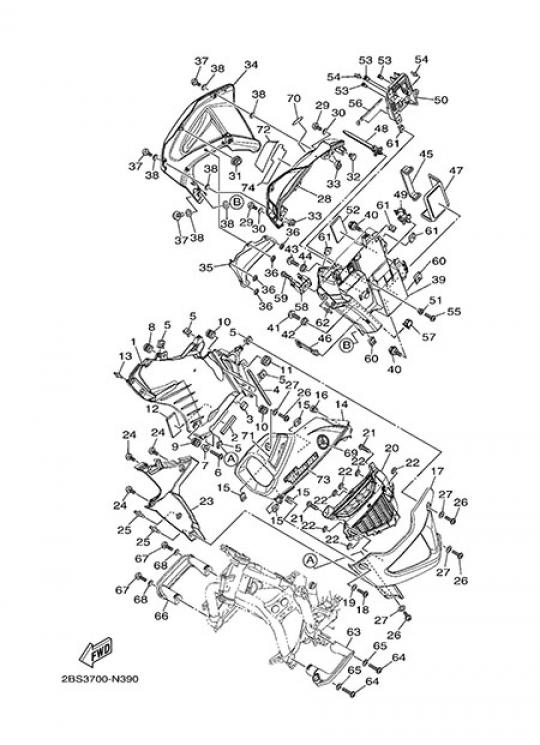

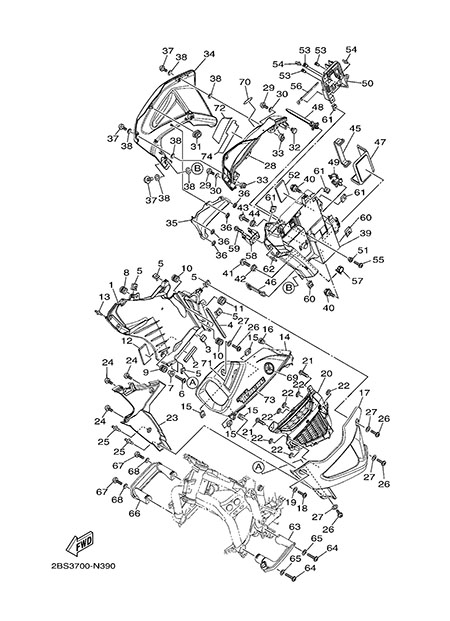

BOVEDA

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	23P2137U0000 GUIA DE AIRE 1	1	214,72 €	+
2	905201000600 recambio	1	1,10 €	+
3	905201000700 recambio	1	1,10 €	+
4	2D12174Y0000 AMORTIGUADOR	1	1,76 €	+
5	901830507600 NUT, SPRING	1	2,07 €	+
6	901110613700 TORNILLO	1	1,24 €	+
7	903870704200 ESPACIADOR	1	2,11 €	+
8	904801259600 TAPON	1	6,58 €	+
9	904801445200 TAPON	1	4,11 €	+
10	904801843100 TAPON	1	1,94 €	+
11	904800155800 GROMMET	1	2,95 €	+
12	5XT217460000 AMORTIGUADOR	1	1,46 €	+
13	902690600800 RIVET	1	1,10 €	+
14	23P2842M00P7 recambio	1	141,57 €	+
15	901830507600 NUT, SPRING	1	2,07 €	+
16	903381013200 PLUG	1	2,71 €	+
17	23P2835U00P1 PANEL 1	1	388,64 €	+
18	901110500300 BOLT, HEXAGON SOCKET BUTTON	1	1,76 €	+
19	902020518000 ARANDELA DE PLANA	1	2,76 €	+
20	23P2837V0000 REJILLA, SAKIDA DE AIRE 1	1	138,97 €	+
21	977025001400 SCREW, TAPPING	1	0,53 €	+
22	9018305M0200 NUT, SPRING	5	0,53 €	+
23	23P2836K0000 PANEL 1	1	98,47 €	+
24	901110500200 BOLT, HEXAGON SOCKET BUTTON	1	1,17 €	+
25	902690600800 RIVET	1	1,10 €	+
26	901110500300 BOLT, HEXAGON SOCKET BUTTON	1	1,76 €	+
27	902020518000 ARANDELA DE PLANA	1	2,76 €	+
28	23P2842N00P7 recambio	1	144,58 €	+
29	901110500300 BOLT, HEXAGON SOCKET BUTTON	1	1,76 €	+
30	902020518000 ARANDELA DE PLANA	1	2,76 €	+
31	904800155800 GROMMET	1	2,95 €	+
32	903381013200 PLUG	1	2,71 €	+
33	5PW2177L0000 GUARDABARERO DELT.	1	8,31 €	+
34	23P2835V00P1 PANEL 2	1	388,64 €	+
35	23P283650000 CUBIERTA	1	14,36 €	+
36	9018305M0200 NUT, SPRING	5	0,53 €	+
37	14B283860000 CABEZA	1	15,36 €	+
38	2TK217570000 ARANDELA ESPECIAL 1	5	0,53 €	+
39	23P8210E0100 recambio	1	71,19 €	+
40	901090617100 PERNO	1	1,81 €	+
41	958220601600 BOLT, FLANGE	1	0,79 €	+
42	903870615300 COLLAR	1	2,25 €	+
43	958020601600 BOLT, FLANGE	1	0,79 €	+
44	90387066R800 CASQUILLO CON VALONA	1	4,66 €	+
45	137821310100 BAND, BATTERY	1	11,26 €	+
46	116821310000 TIRANTE DE BATERIA	1	15,95 €	+
47	23P821220000 ASIENTO DE BATERIA	1	45,35 €	+
48	904645000100 BRIDA	1	2,35 €	+
49	904641600600 CLAMP	1	1,90 €	+
50	23P283960000 PLACA 1	1	31,34 €	+
51	903870618400 CASQUILLO CON VALONA	1	3,96 €	+
52	5TH212680100 SELLO	1	3,11 €	+
53	903380601800 PLUG	1	5,83 €	+
54	902690600800 RIVET	1	1,10 €	+
55	901110603800 TORNILLO	1	3,65 €	+
56	904643400200 CLAMP	1	1,31 €	+
57	904642002100 BRIDA	1	7,78 €	+
58	23P283210000 SOPORTE	1	6,02 €	+
59	977025001600 SCREW, TAPPING	5	0,53 €	+
60	5PW2177L0000 GUARDABARERO DELT.	1	8,31 €	+
61	901830507600 NUT, SPRING	1	2,07 €	+
62	902690600800 RIVET	1	1,10 €	+
63	23P2834V0000 PROTECTOR 1	1	53,30 €	+
64	920120803000 PERNO	1	1,46 €	+
65	902010804300 ARANDELA PLANA	1	0,79 €	+
66	23P2834W0000 PROTECTOR 2	1	53,07 €	+
67	920120803000 PERNO	1	1,46 €	+
68	902010804300 ARANDELA PLANA	1	0,79 €	+
69	5YU2411B0100 recambio	1	47,42 €	+
70	5YU2411B0100 recambio	1	47,42 €	+
71	23P283919000 CALCOMANIA DE BOVEDA 1	1	18,97 €	+
72	23P283929000 CALCOMANIA DE BOVEDA 2	1	18,97 €	+
73	23P283154000 EMBLEMA	1	33,56 €	+
74	23P283154000 EMBLEMA	1	33,56 €	+
