Inicio > Modelos Yamaha > 125cc SCOOTERS > D'elight 125 > 2021 > Soporte & apoyapie

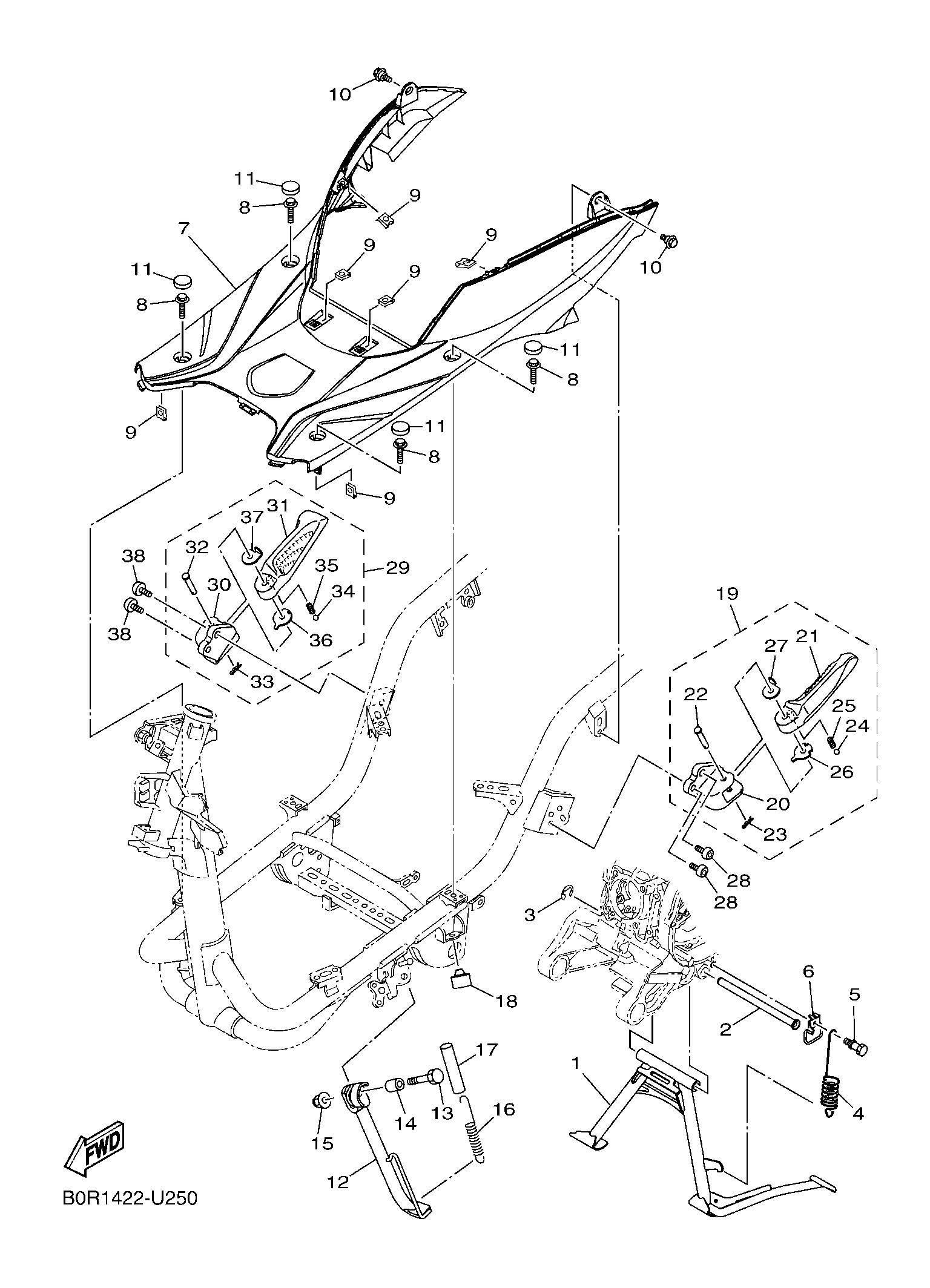

Volver al despiece completo

# Ref. unds. Precio/unidad
1 2TDF71110000
STAND, MAIN 		1 65,46 € +
2 2BMF71120000
SHAFT, MAIN STAND 		1 3,94 € +
3 990020960000
CIRCLIP 		1 2,11 € +
4 905063281200
SPRING, TENSION 		1 2,05 € +
5 90109068B900
BOLT 		1 0,57 € +
6 2BMF72670000
GUIDE, WIRE 		1 1,75 € +
7 2TDF74810000
BOARD, FOOTREST 		1 51,51 € +
8 901190609600
BOLT, WITH WASHER 		1 2,18 € +
9 901830580700
NUT, SPRING 		5 0,52 € +
10 901090620200
BOLT 		1 1,32 € +
11 1DRF74751100
CAP 1 		1 0,34 € +
12 2TDF73110000
STAND, SIDE 		1 19,95 € +
13 901010882900
BOLT 		1 0,61 € +
14 903870882000
COLLAR 		1 0,92 € +
15 956020820000
NUT, U FLANGE 		1 3,26 € +
16 905062082900
SPRING, TENSION 		1 2,05 € +
17 904452184800
HOSE (L70) 		1 8,58 € +
18 5WPF72140000
STOPPER 		5 0,61 € +
19 B0RF74300000
REAR FOOTREST ASSY 1 		1 30,27 € +
20 B0RF741L0000
.BRACKET 4 		1 5,49 € +
21 B0RF74310000
.FOOTREST, REAR 1 		1 23,48 € +
22 902400681000
.PIN, CLEVIS 		1 0,38 € +
23 904681200700
CLIP 		5 2,18 € +
24 935010482300
.BALL 		1 0,34 € +
25 905011281200
.SPRING, COMPRESSION 		1 0,18 € +
26 B0RF74170000
.WASHER, FOOTREST 		1 0,18 € +
27 B0RF74120000
.BRACKET, FOOTREST 1 		1 0,18 € +
28 920120802000
BOLT, BUTTON HEAD 		1 2,46 € +
29 B0RF74400000
REAR FOOTREST ASSY 2 		1 30,27 € +
30 B0RF742L0000
.BRACKET 5 		1 5,49 € +
31 B0RF74410000
.FOOTREST, REAR 2 		1 23,48 € +
32 902400681000
.PIN, CLEVIS 		1 0,38 € +
33 904681200700
CLIP 		5 2,18 € +
34 935010482300
.BALL 		1 0,34 € +
35 905011281200
.SPRING, COMPRESSION 		1 0,18 € +
36 B0RF74370000
.WASHER, SPECIAL 		1 0,18 € +
37 B0RF74220000
.BRACKET, FOOTREST 2 		1 0,18 € +
38 920120802000
BOLT, BUTTON HEAD 		1 2,46 € +
