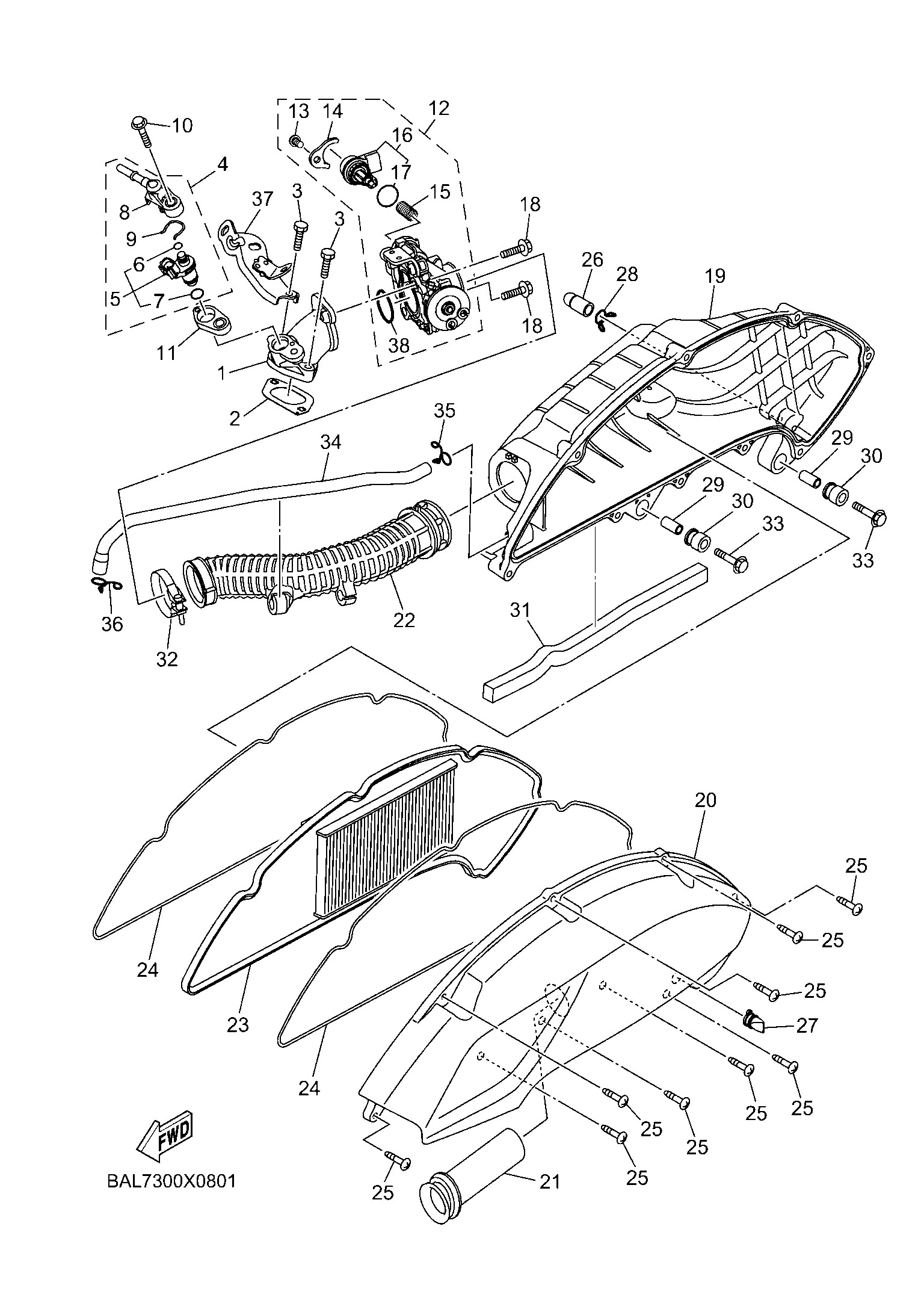

Inicio > Modelos Yamaha > 125cc SCOOTERS > NMAX 125 > 2023 > Intake
Volver al despiece completo

# Ref. unds. Precio/unidad
1 B6HE35850000
MANIFOLD 		1 28,41 € +
2 B6HE41990000
GASKET 		1 4,81 € +
3 913320602500
BOLT 		1 0,34 € +
4 B8RE37700000
INJECTOR ASSY 		1 98,00 € +
5 B8RE37610000
.INJECTOR 		1 90,41 € +
6 54PE41470000
..O-RING 		1 1,75 € +
7 5CAE41470000
..O-RING 		1 5,71 € +
8 54PE39380000
.PIPE 		1 8,34 € +
9 54PE41370000
.CLIP 		1 1,32 € +
10 95D320603000
BOLT, FLANGE DEEP RECESS 		1 0,61 € +
11 2DPE35560000
GASKET, MANIFOLD 		1 5,98 € +
12 B2TE37500100
THROTTLE BODY ASSY 		1 413,05 € +
13 985020601200
.SCREW, PAN HEAD 		1 0,52 € +
14 54PE42430000
.PLATE 		1 3,65 € +
15 54PE43350000
.SPRING, PLUNGER 		1 3,94 € +
16 B63H58010100
.STEPPING MOTOR 		1 94,49 € +
17 54PE416A0000
..O-RING 		1 2,18 € +
18 901100684600
BOLT, HEXAGON SOCKET HEAD 		1 1,71 € +
19 B8RE44111000
.CASE, AIR CLEANER 1 		1 34,29 € +
20 B6HE44121000
.CAP, CLEANER CASE 1 		1 32,93 € +
21 B6HE44370000
.DUCT 		1 17,28 € +
22 B8RE44530000
.JOINT, AIR CLEANER 1 		1 31,04 € +
23 B6HE44510000
.ELEMENT, AIR CLEANER 		1 18,66 € +
24 B6HE44521000
.SEAL 		1 8,57 € +
25 977075002500
SCREW, TAPPING 		5 0,43 € +
26 5TLE443E0000
PIPE, DRAIN 		1 4,23 € +
27 B5DE443G0000
.PIPE, DRAIN 2 		1 6,40 € +
28 904671280900
CLIP 		1 0,61 € +
29 B74E44490000
COLLAR 		1 1,07 € +
30 B6HE44350000
.GROMMET 		1 3,43 € +
31 905201581600
.DAMPER, PLATE 		1 0,18 € +
32 904504380500
HOSE CLAMP ASSY 		1 4,35 € +
33 95D320603000
BOLT, FLANGE DEEP RECESS 		1 0,61 € +
34 B6HE11660000
PIPE, BREATHER 1 		1 18,70 € +
35 904671182500
CLIP 		1 1,71 € +
36 904671205200
CLIP 		1 2,18 € +
37 B6HE41460000
PLATE 		1 4,13 € +
38 2PHE416A0000
.O-RING 		1 2,81 € +
