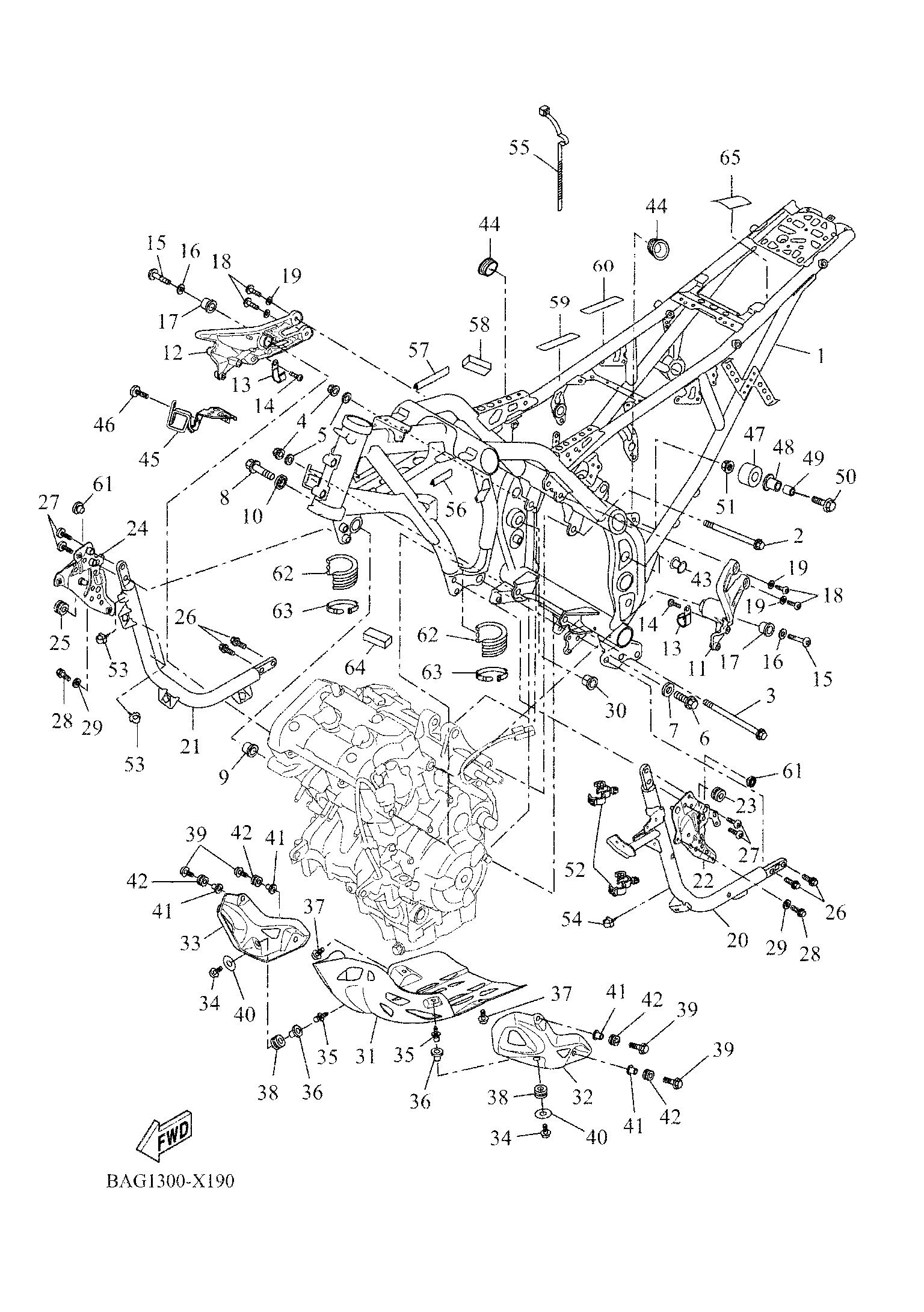

| # | Ref. | unds. | Precio/unidad | |
|---|---|---|---|---|
| 1 |
BAGF11100000 FRAME COMP. |
1 | 1.935,47 € | + |
| 2 |
901051021900 BOLT, FLANGE |
1 | 6,86 € | + |
| 3 |
901051034900 BOLT, FLANGE |
1 | 9,26 € | + |
| 4 |
901791002400 NUT |
1 | 1,66 € | + |
| 5 |
902011003500 WASHER, PLATE |
1 | 1,37 € | + |
| 6 |
901051209200 BOLT, FLANGE |
1 | 6,69 € | + |
| 7 |
902011302000 WASHER, PLATE |
1 | 3,09 € | + |
| 8 |
901051210400 BOLT, FLANGE |
1 | 4,98 € | + |
| 9 |
BW3F14950000 BOLT, ENGINE ADJUSTING |
1 | 1,83 € | + |
| 10 |
9038714X0000 COLLAR |
1 | 0,92 € | + |
| 11 |
BAGF13150000 STAY, ENGINE 1 |
1 | 91,09 € | + |
| 12 |
BAGF13160000 STAY, ENGINE 2 |
1 | 28,07 € | + |
| 13 |
904650839500 CLAMP |
1 | 15,20 € | + |
| 14 |
920170601000 BOLT, BUTTON HEAD |
1 | 1,37 € | + |
| 15 |
901111005400 BOLT, HEXAGON SOCKET BUTTON |
1 | 6,23 € | + |
| 16 |
902011003400 WASHER, PLATE |
1 | 2,87 € | + |
| 17 |
BW3F14950000 BOLT, ENGINE ADJUSTING |
1 | 1,83 € | + |
| 18 |
90109085G600 BOLT |
1 | 1,50 € | + |
| 19 |
902010805700 WASHER, PLATE |
1 | 2,05 € | + |
| 20 |
BAG211020000 SIDE MEMBER SUB-ASSY 1 |
1 | 174,34 € | + |
| 21 |
BAG211030000 SIDE MEMBER SUB-ASSY 2 |
1 | 174,34 € | + |
| 22 |
BAGF142L0000 BRACKET, RADIATOR 2 |
1 | 40,00 € | + |
| 23 |
904800155800 GROMMET |
1 | 2,87 € | + |
| 24 |
BAGF142M0000 BRACKET, RADIATOR 3 |
1 | 18,79 € | + |
| 25 |
904800155800 GROMMET |
1 | 2,87 € | + |
| 26 |
9010508X2300 BOLT, FLANGE |
1 | 3,65 € | + |
| 27 |
90109083A800 BOLT |
1 | 1,89 € | + |
| 28 |
958170601600 BOLT, FLANGE |
1 | 0,77 € | + |
| 29 |
902010602900 WASHER, PLATE |
1 | 0,57 € | + |
| 30 |
11DF14940000 NUT |
1 | 19,28 € | + |
| 31 |
BAGF14711000 PROTECTOR, ENGINE |
1 | 360,38 € | + |
| 32 |
BAGF195A0000 PROTECTOR, FRAME A |
1 | 199,79 € | + |
| 33 |
BAGF195B0000 PROTECTOR, FRAME B |
1 | 199,79 € | + |
| 34 |
970220601000 BOLT, HEXAGON |
5 | 1,27 € | + |
| 35 |
BAGF11C50000 SCREW 1 |
1 | 18,34 € | + |
| 36 |
9038711X0100 COLLAR |
1 | 9,49 € | + |
| 37 |
901190615500 BOLT, WITH WASHER |
1 | 1,07 € | + |
| 38 |
904801936800 GROMMET |
1 | 5,26 € | + |
| 39 |
901190618100 BOLT, WITH WASHER |
1 | 0,77 € | + |
| 40 |
902010603300 WASHER, PLATE |
1 | 0,34 € | + |
| 41 |
90387066Y600 COLLAR |
1 | 6,34 € | + |
| 42 |
904801028900 GROMMET |
1 | 1,07 € | + |
| 43 |
903381580300 PLUG |
1 | 4,23 € | + |
| 44 |
BW3F13991000 CAP |
1 | 4,93 € | + |
| 45 |
BEHF12880000 GUIDE, CABLE |
1 | 23,31 € | + |
| 46 |
901110686400 BOLT, HEXAGON SOCKET BUTTON |
1 | 2,01 € | + |
| 47 |
30X221780000 TENSIONER |
1 | 15,73 € | + |
| 48 |
10V221840000 BUSH |
1 | 4,35 € | + |
| 49 |
903870812000 COLLAR |
1 | 4,19 € | + |
| 50 |
958140804500 BOLT, FLANGE |
1 | 3,21 € | + |
| 51 |
956020820000 NUT, U FLANGE |
1 | 3,26 € | + |
| 52 |
904641824600 CLAMP |
1 | 1,42 € | + |
| 53 |
904641080000 CLAMP |
1 | 1,89 € | + |
| 54 |
904641080000 CLAMP |
1 | 1,89 € | + |
| 55 |
9046407M4000 CLAMP |
1 | 4,53 € | + |
| 56 |
31A241880100 MOLD, FUEL TANK |
1 | 12,09 € | + |
| 57 |
2D1247850000 MOLE, SEAT |
1 | 8,73 € | + |
| 58 |
905200283700 DAMPER, PLATE |
1 | 0,34 € | + |
| 59 |
BW3F117G0200 PROTECTOR |
1 | 16,24 € | + |
| 60 |
BW3F117G1200 PROTECTOR |
1 | 16,24 € | + |
| 61 |
5YKF47410000 PAD, SEAT |
1 | 1,27 € | + |
| 62 |
11DF41830000 DAMPER, LOCATING 3 |
1 | 4,09 € | + |
| 63 |
4KHH39360100 BAND, SWITCH CORD |
1 | 3,09 € | + |
| 64 |
905202000400 DAMPER, PLATE |
1 | 1,37 € | + |
| 65 |
3HA241410000 PROTECTOR, FUEL TANK |
1 | 10,76 € | + |
