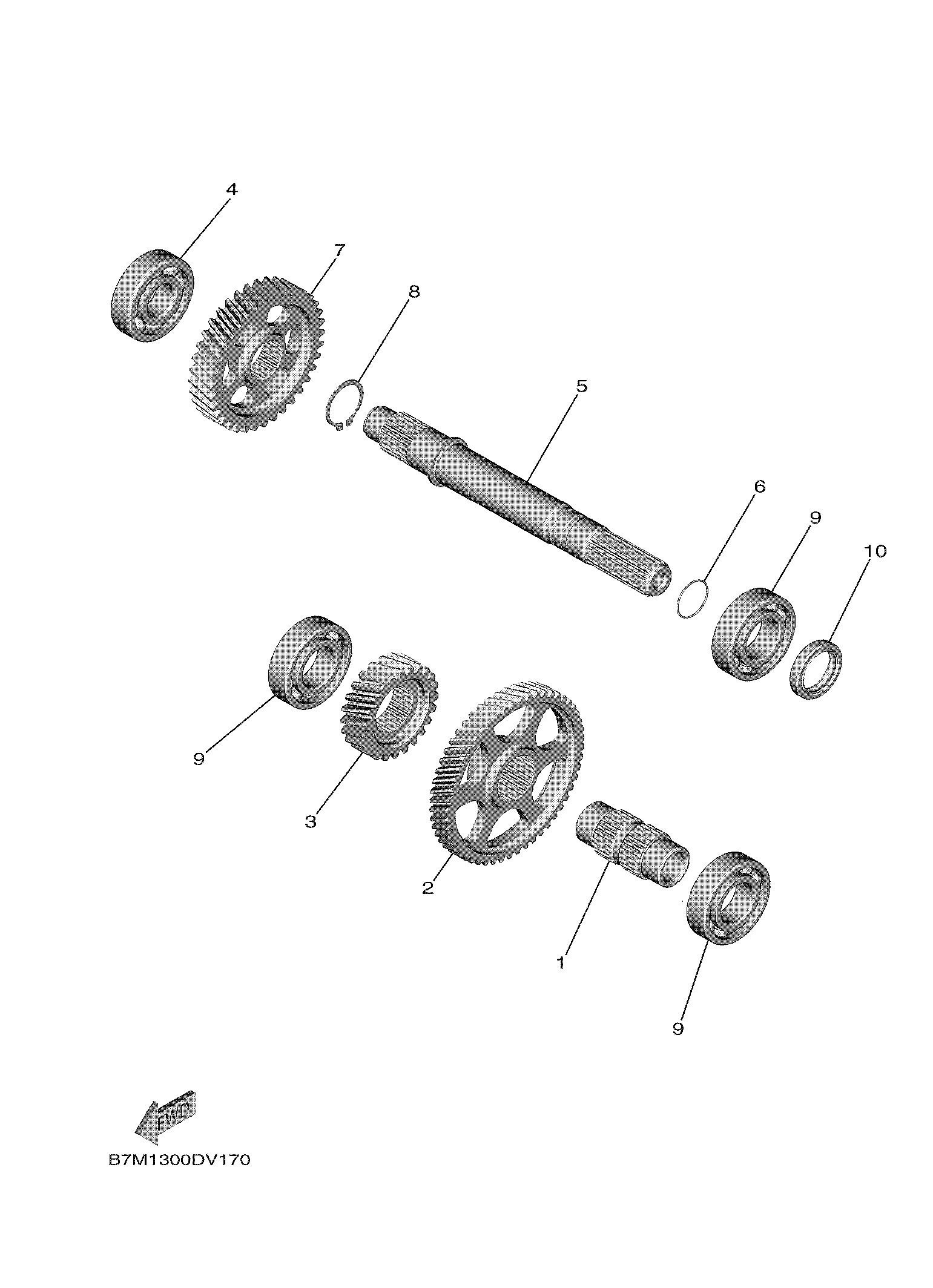

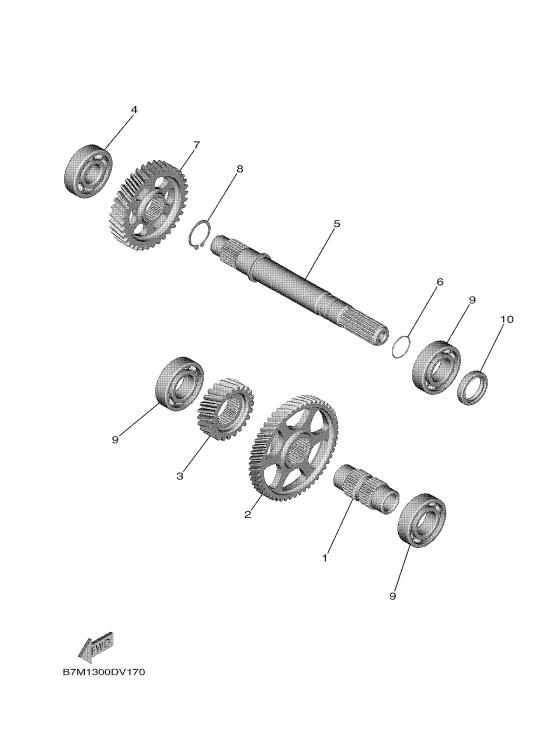

| # | Ref. | unds. | Precio/unidad | |
|---|---|---|---|---|
| 1 |
59C174111000 AXLE, MAIN |
1 | 320,60 € | + |
| 2 |
59C161510000 GEAR, PRIMARY DRIVEN (52T) |
1 | 180,92 € | + |
| 3 |
B7M171110000 GEAR,1ST PINION |
1 | 88,23 € | + |
| 4 |
933063042700 BEARING |
1 | 34,12 € | + |
| 5 |
B7M174210000 AXLE, DRIVE |
1 | 180,55 € | + |
| 6 |
932102100600 O-RING |
1 | 1,08 € | + |
| 7 |
B7M172110000 GEAR, 1ST WHEEL (36T) |
1 | 201,65 € | + |
| 8 |
990092540000 CIRCLIP |
1 | 0,51 € | + |
| 9 |
93306205A800 BEARING |
1 | 49,65 € | + |
| 10 |
931022506400 OIL SEAL |
1 | 9,18 € | + |
