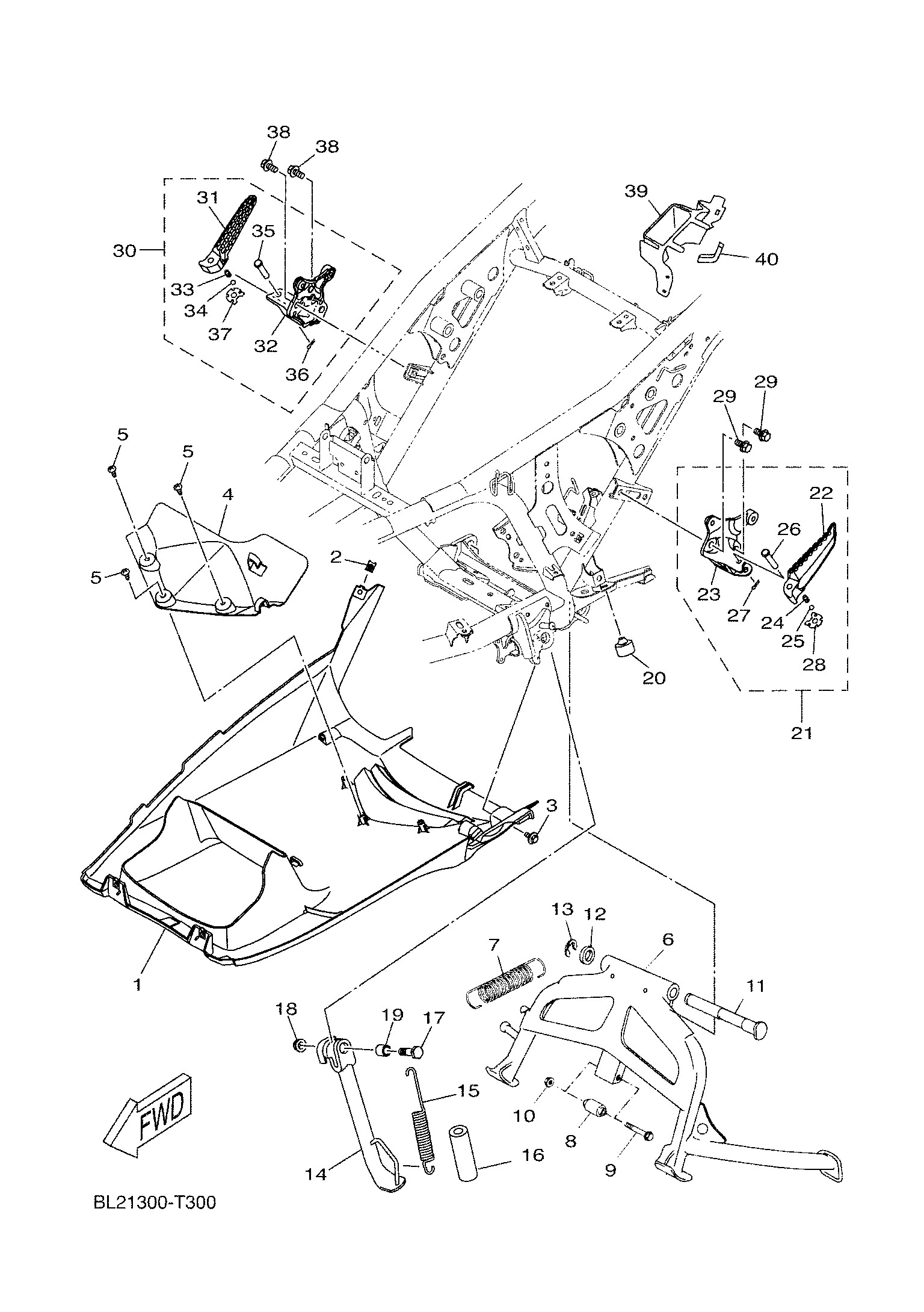

| # | Ref. | unds. | Precio/unidad | |
|---|---|---|---|---|
| 1 |
B74F83850000 COVER, UNDER |
1 | 61,15 € | + |
| 2 |
901830504200 NUT, SPRING |
5 | 0,52 € | + |
| 3 |
9010906X1800 BOLT |
1 | 8,58 € | + |
| 4 |
B74F838N0000 DUCT 1 |
1 | 18,40 € | + |
| 5 |
9016705X0600 SCREW, TAPPING |
1 | 1,85 € | + |
| 6 |
2DMF71110000 STAND, MAIN |
1 | 102,22 € | + |
| 7 |
9050635X0200 SPRING, TENSION |
1 | 8,34 € | + |
| 8 |
4HC271140000 STOPPER, MAIN STAND |
1 | 23,91 € | + |
| 9 |
37PF71120000 SHAFT, MAIN STAND |
5 | 1,27 € | + |
| 10 |
957020530000 NUT, NYLON |
1 | 1,21 € | + |
| 11 |
58K271120200 SHAFT, MAIN STAND |
1 | 20,52 € | + |
| 12 |
902021515300 WASHER, PLATE |
1 | 2,46 € | + |
| 13 |
934301200800 CIRCLIP |
5 | 1,21 € | + |
| 14 |
B74F73110000 STAND, SIDE |
1 | 73,15 € | + |
| 15 |
905063281300 SPRING, TENSION |
1 | 5,66 € | + |
| 16 |
5VX273510000 GUIDE, SIDE STAND |
1 | 4,20 € | + |
| 17 |
901011083000 BOLT |
1 | 1,75 € | + |
| 18 |
956021020000 NUT, SELF-LOCKING |
1 | 3,65 € | + |
| 19 |
903871084900 COLLAR |
1 | 1,21 € | + |
| 20 |
2JWF71140000 STOPPER, MAIN STAND |
1 | 2,28 € | + |
| 21 |
B74F74300000 REAR FOOTREST ASSY 1 |
1 | 51,19 € | + |
| 22 |
2DPF74310100 .FOOTREST, REAR 1 |
1 | 17,95 € | + |
| 23 |
B74F741L0000 .BRACKET 4 |
1 | 29,04 € | + |
| 24 |
905011274300 SPRING, COMPRESSION |
1 | 4,46 € | + |
| 25 |
935010483000 .BALL |
1 | 3,09 € | + |
| 26 |
917020803800 .PIN, CLEVIS |
1 | 5,08 € | + |
| 27 |
914022501500 PIN, COTTER |
5 | 1,27 € | + |
| 28 |
B74F74370000 .WASHER, SPECIAL |
1 | 1,07 € | + |
| 29 |
901050880900 BOLT, FLANGE |
1 | 3,26 € | + |
| 30 |
B74F74400000 REAR FOOTREST ASSY 2 |
1 | 51,19 € | + |
| 31 |
2DPF74410100 .FOOTREST, REAR 2 |
1 | 17,42 € | + |
| 32 |
B74F742L0000 .BRACKET 5 |
1 | 29,04 € | + |
| 33 |
905011274300 SPRING, COMPRESSION |
1 | 4,46 € | + |
| 34 |
935010483000 .BALL |
1 | 3,09 € | + |
| 35 |
917020803800 .PIN, CLEVIS |
1 | 5,08 € | + |
| 36 |
914022501500 PIN, COTTER |
5 | 1,27 € | + |
| 37 |
B74F74370000 .WASHER, SPECIAL |
1 | 1,07 € | + |
| 38 |
901050880900 BOLT, FLANGE |
1 | 3,26 € | + |
| 39 |
BL1F175E0000 PANEL, INNER |
1 | 14,51 € | + |
| 40 |
9052010X0400 DAMPER, PLATE |
1 | 8,67 € | + |
